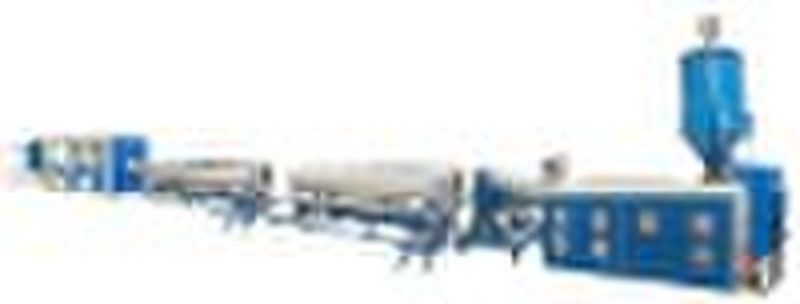

16-63mm HDPE Pipe Production line

PE/HDPE Pipe Production line ;Pipe Making Line; Pipe Extrusion Line Briefs 1. Diameter: 16-800mm 2. Output: 60-900kg/hr 3. Max. production speed: 0.7-10m/minIt contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.Specifications and ExtruderPipe range16-63mm20-110mm75-160mm90-250mm110-315mm160-450mm315-630mm500-800mmExtruder¢45mm¢60mm¢75mm¢75mm¢90mm¢90mm¢120mm¢150mmExtruder powerAC30kwDC75kwDC110kwDC110kwDC160kwDC160kwDC280kwDC335kwExtrusion capacity60-100kg100-150kg250-300kg250-300kg350-400kg350-400kg650-700kg850-900kgMax. production speed10m/min6m/min6m/min6m/min3 m/min1.2m/min0.9m/min0.7m/minFeatures This series of extruders have excellent advantages of good compounding, high output,stable operation, great application range, long live span.Barrel cooling: wind cooling or outer cycle oil cooling.Temperature control instrument: RKC instrument or local made instrument.Speed :adjusting equipment of main machine: silicon control direct current stepless speed regulation or Japan's frequency conversion alternation current speed regulation or England's digital direct current speed regulationCustomers can make the choice according their own requirements.One year quality guarantee and timely sevice.
